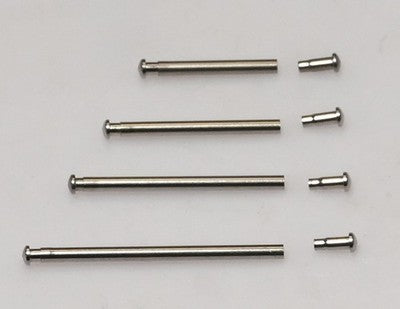

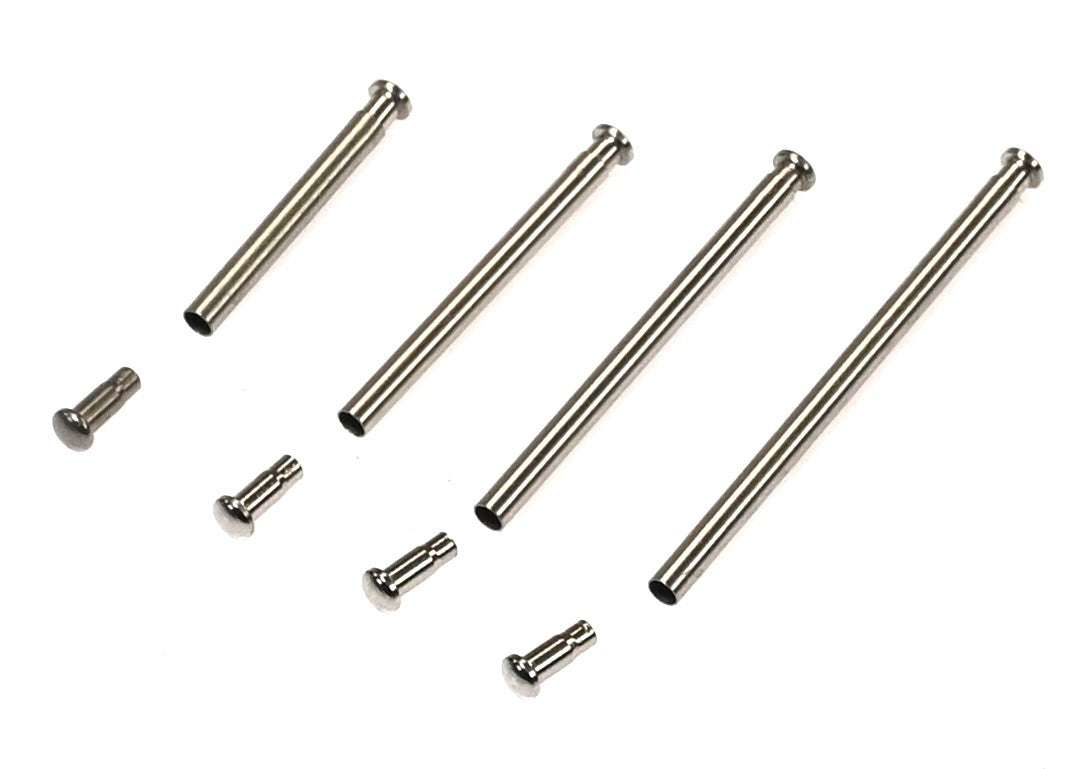

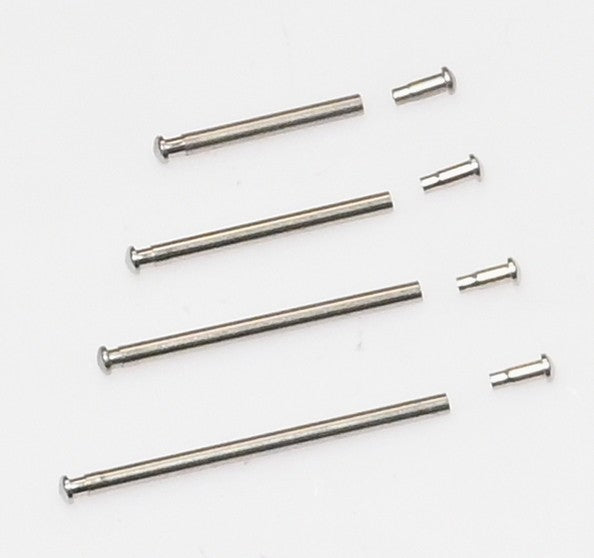

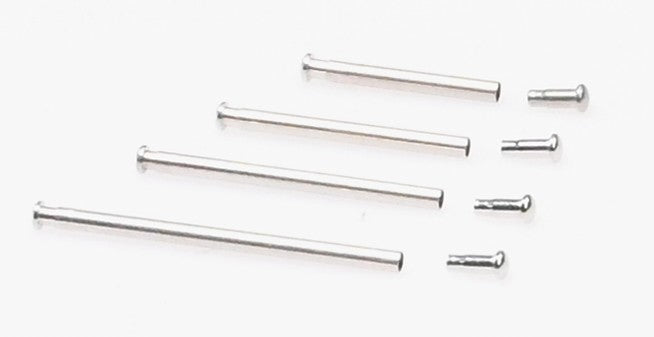

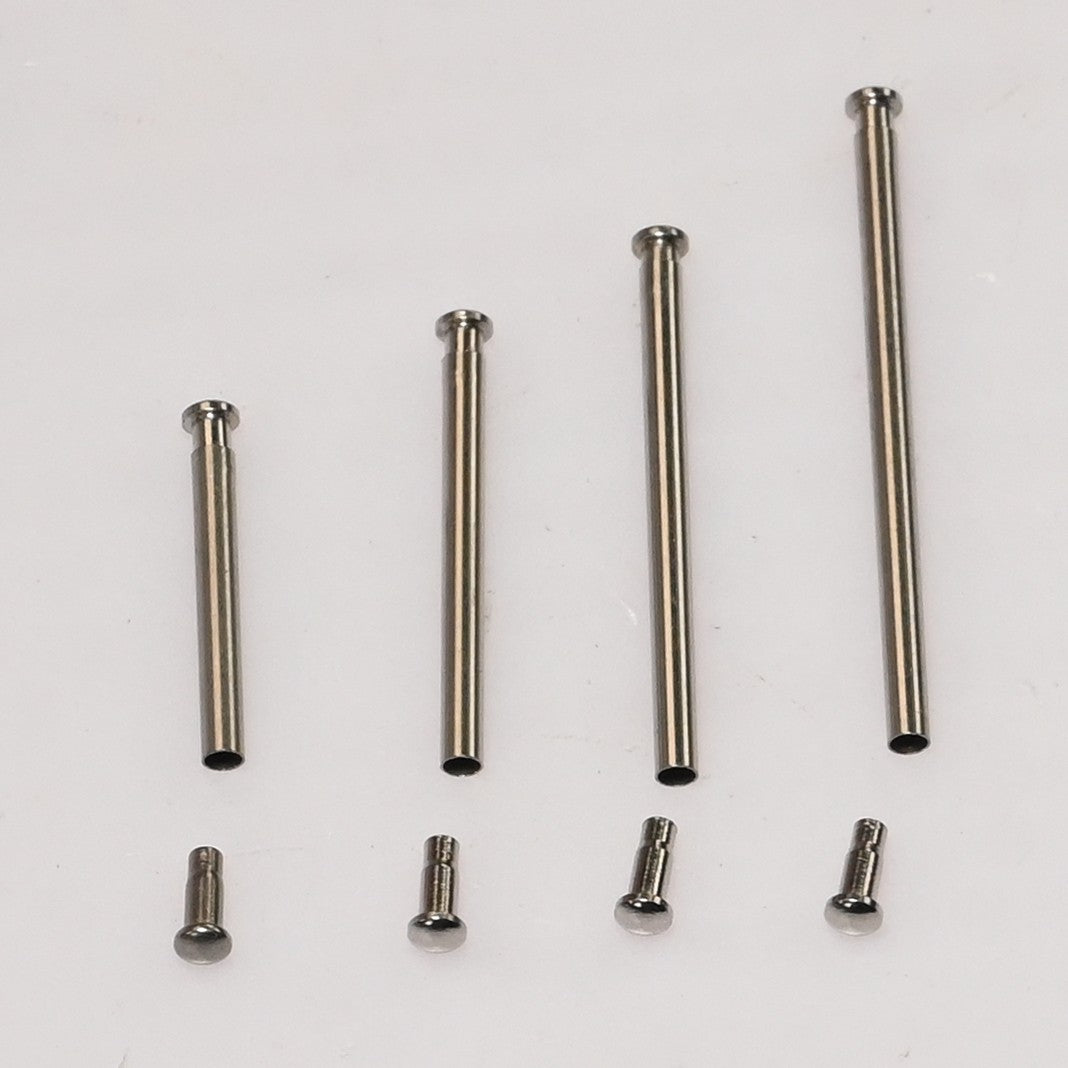

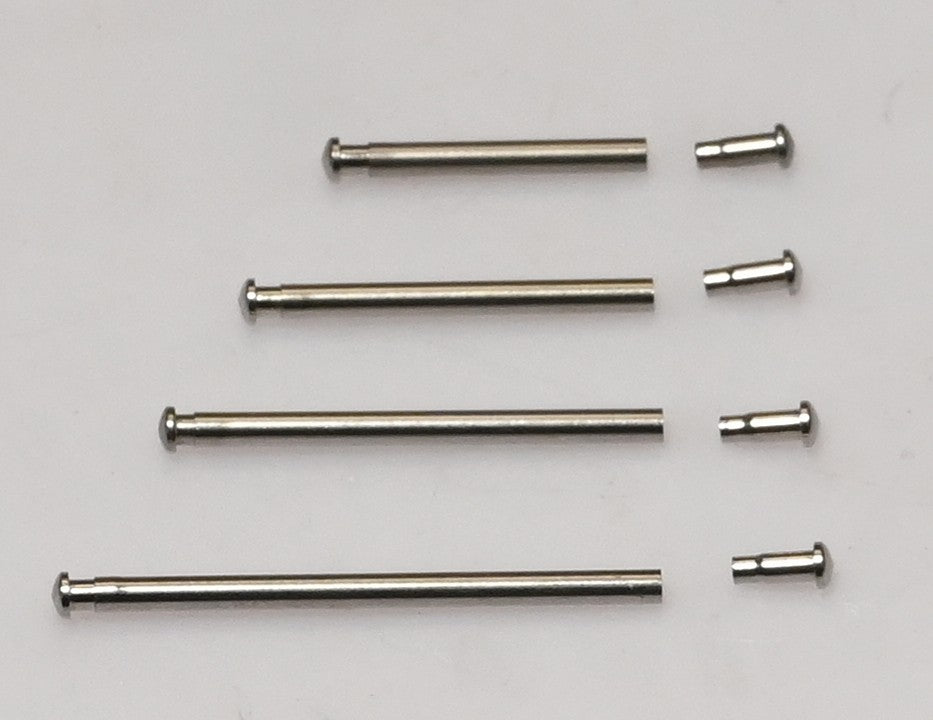

Single stainless steel friction pin with matching tube (collar/sleeve), diameter 1.5mm. Choose your required length at checkout — available in 11 sizes from 10mm to 30mm in 2mm increments.
This is the pin-and-tube (also called pin-and-pipe or pin-and-collar) system used in metal watch bracelets where the hollow tube sits in the centre link of a three-part link assembly to retain the pin by friction-fit. Both ends of the pin are the same diameter — this is not a tapered cotter/split pin.
Specifications
-
Type: Friction pin with centre tube/sleeve (pin-and-pipe system)
-

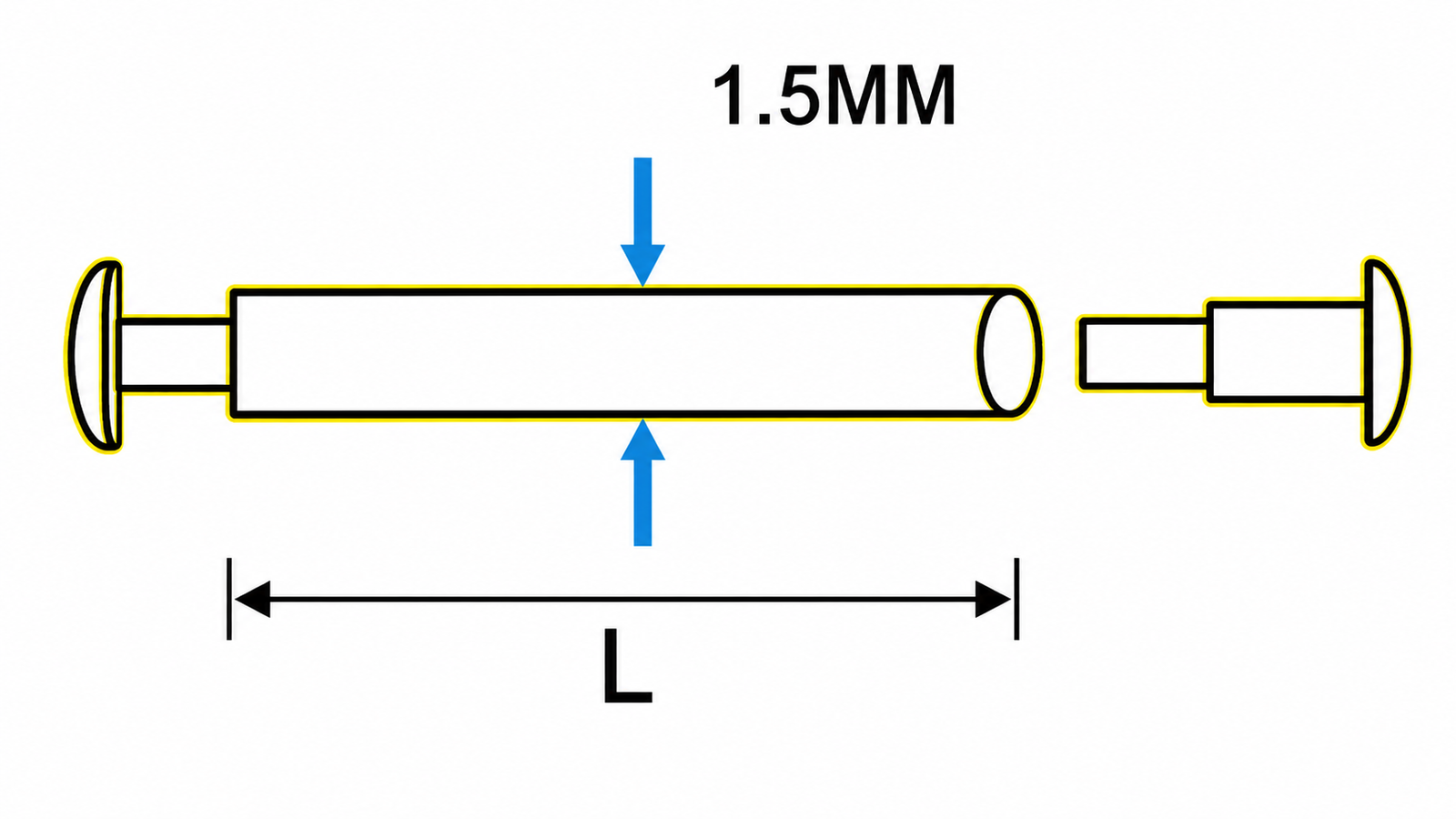

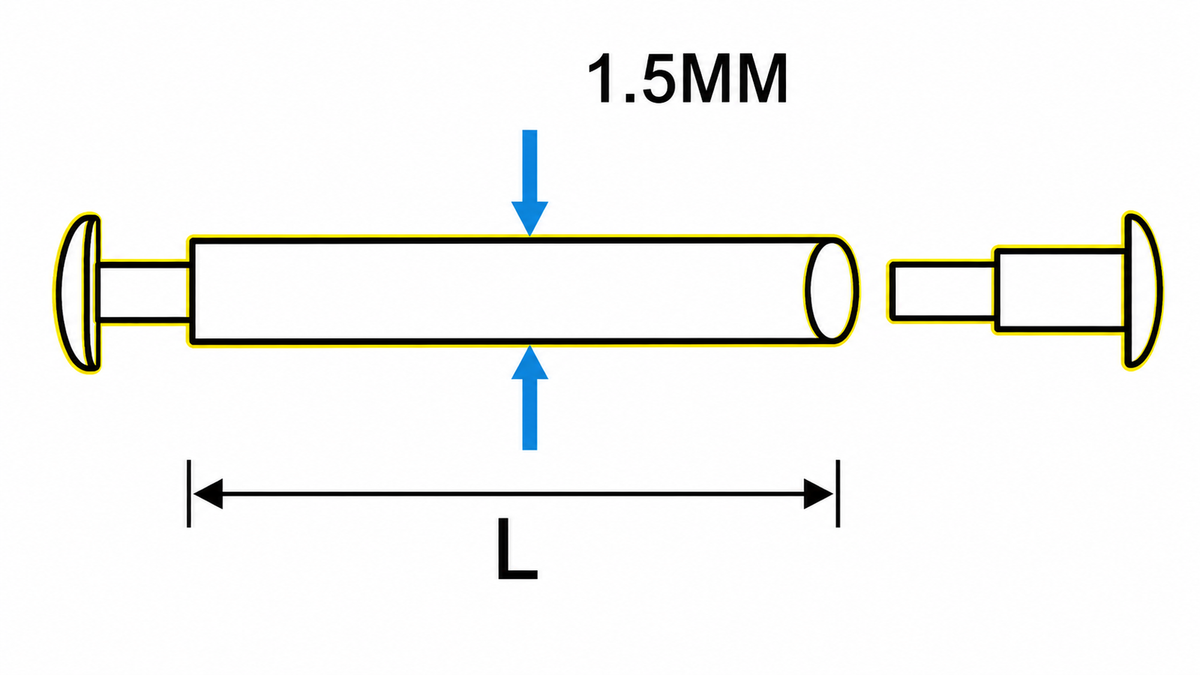

Diameter: 1.5mm
-
Available lengths: 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 24mm, 26mm, 28mm, 30mm
-
Material: Stainless steel, polished finish
-
Quantity: 1 pin + 1 matching tube (sold as a pair)
Compatibility
The 1.5mm pin-and-tube system is used across a wide range of metal watch bracelets. Confirmed users of this pin type include:
-
Seiko — Prospex, Presage, Seiko 5 Sports, Grand Seiko metal bracelets
-
Citizen — including Satellite Wave metal bracelet models
-
Bulova — metal bracelet variants
-
Movado — metal bracelet models
-
Hamilton — metal bracelet models using the collar-in-centre design
-
TAG Heuer — Kirium, Aquaracer (ref. BA0809, BA0815, BA0833), Carrera (ref. BA0786, BA0787, BA0794)
Important: Always measure your existing pin diameter before ordering. Pins may need trimming to length — cut flush with the outer edge of the link once seated. A pin pusher or pin punch tool is required for installation and removal.
Notes
- Sold individually (1 pin + 1 tube) — customer's choice of length
- This is an aftermarket replacement part, not OEM
- The centre tube/sleeve must sit in the middle link; ensure your bracelet uses this style before ordering
Dispatched from the UK
