Pendulum Clock Suspension Spring 5mm Wide Brass & Steel German 5 Sizes B16-30mm

A German-style pendulum suspension spring with a brass top block and spring-steel blade, supplied in five precise B/C length options to match your movement exactly.

⭐ At a glance

📏 5.0mm blade width (A) across all five size options

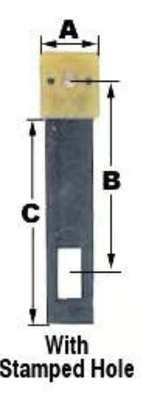

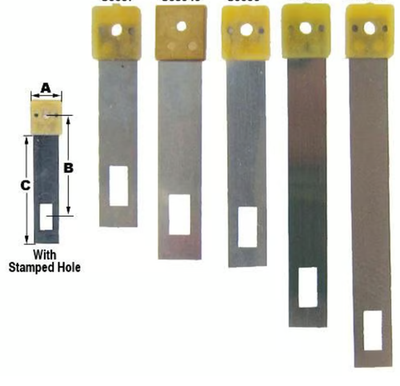

✅ Choose the size that matches your clock's hole-to-slot (B) and spring (C) lengths: 16.0/17.5mm, 19.0/19.0mm, 20.0/20.0mm, 26.5/26.0mm or 30.0/30.0mm

📦 Supplied as a single spring per size ordered

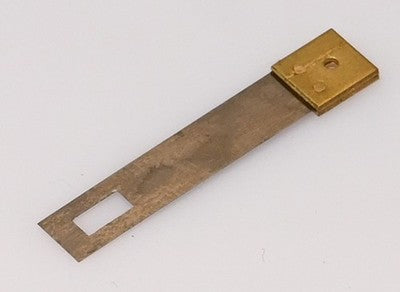

Material: Brass top block with spring-steel blade

Colour: Silver

✅ Fits

This is a classic double-strap style suspension spring, a direct replacement for the common German pattern used in grandfather, mantel and standard wall clocks. The 5.0mm blade width is fixed across the range — select the size by matching the hole-to-slot (B) and spring (C) lengths of your existing spring or movement specification.

⚠️ Please check the B and C measurements against your old spring or clock's movement documentation before ordering, as an incorrect length will affect pendulum timing and swing.
