IWC Vintage Watch Movement Technical PART SHEETS Repairs Data PDF Files

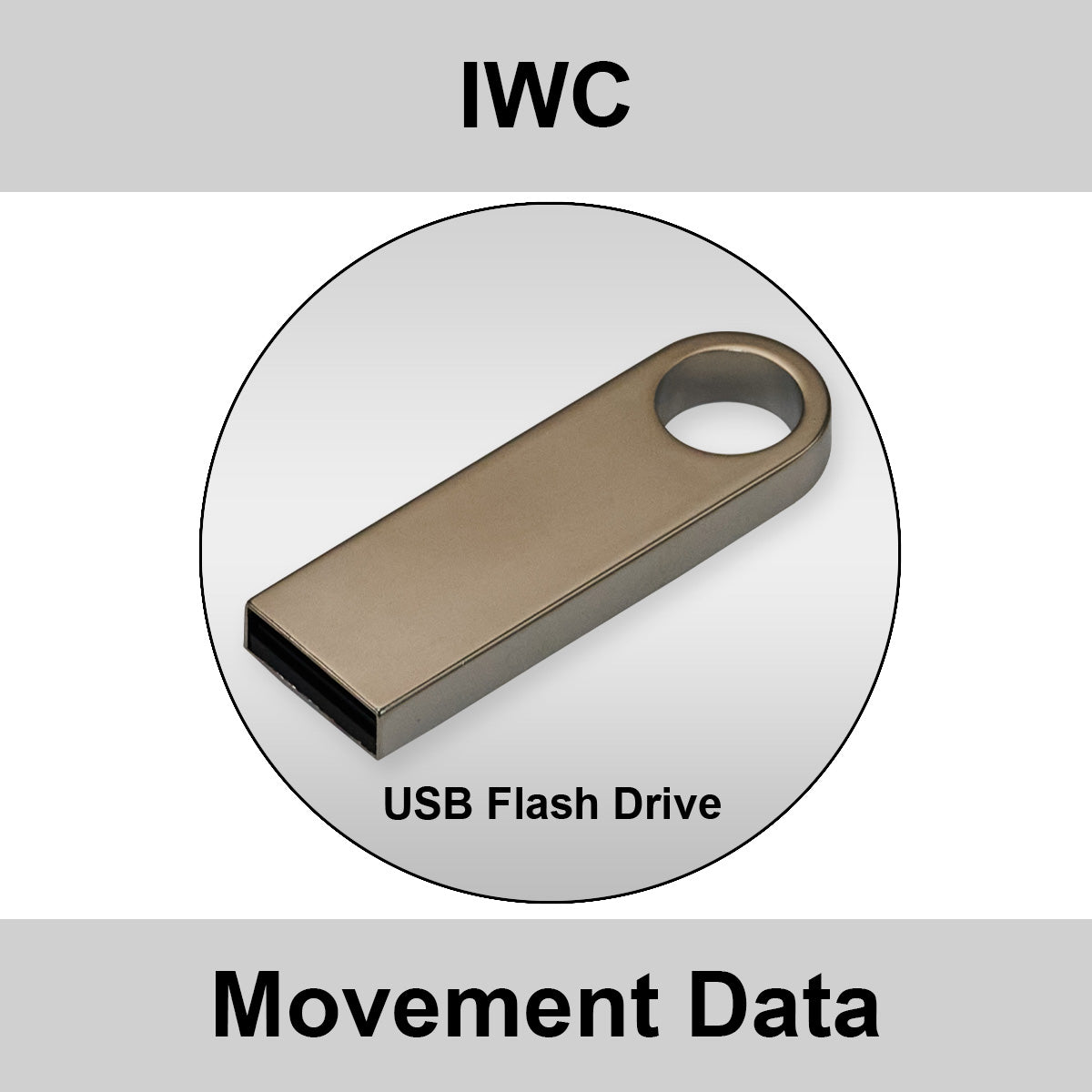

USB memory stick loaded with IWC technical reference material — movement guides, case data and spare parts sheets all in one place.

⭐ At a glance

📦 USB stick containing hundreds of PDF reference files

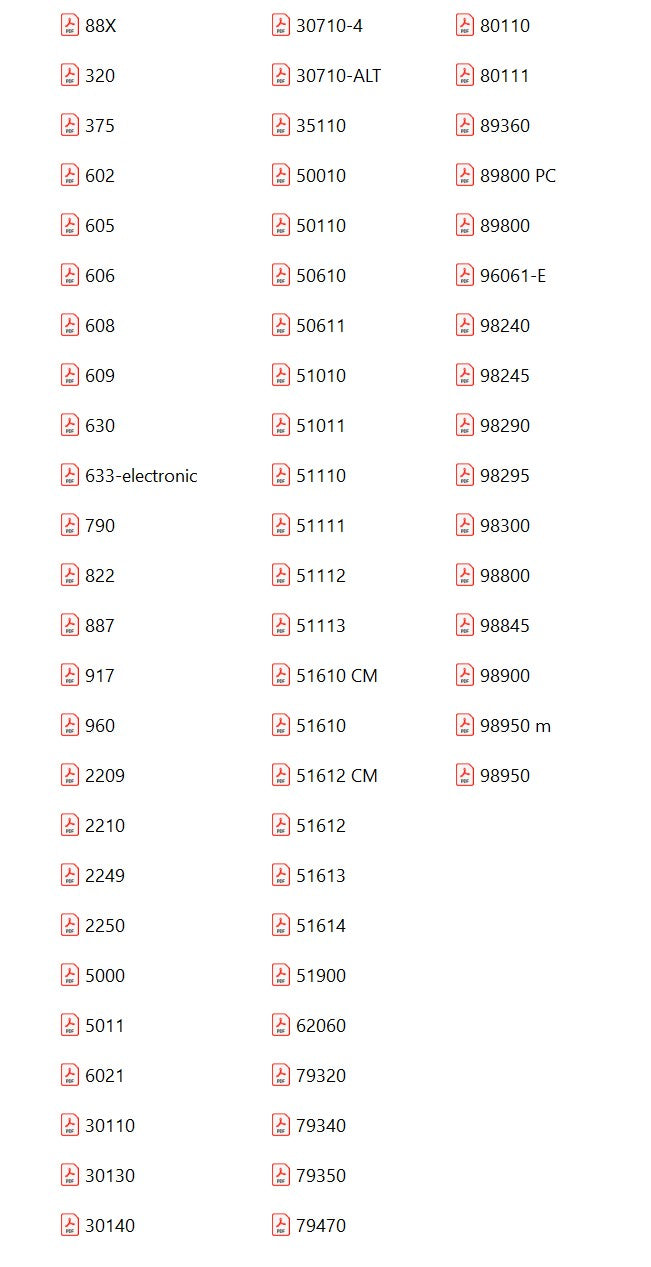

✅ Covers 66 different IWC movements (see photo for full list)

📦 Also includes 119 PDFs on bands, clasps & straps, 445 PDFs on cases, and 74 PDFs on movement spare parts sheets

✔️ Brand new, unused item

🔧 What it does & how to use

This is a digital reference library for anyone working on IWC watches — hobbyist repairers, collectors and professional watchmakers alike. Rather than a physical part, it's a USB stick packed with PDF documents covering movement identification, assembly, spare parts and case/strap data, useful for diagnosing a movement, sourcing the correct part number, or following an assembly sequence at the bench.

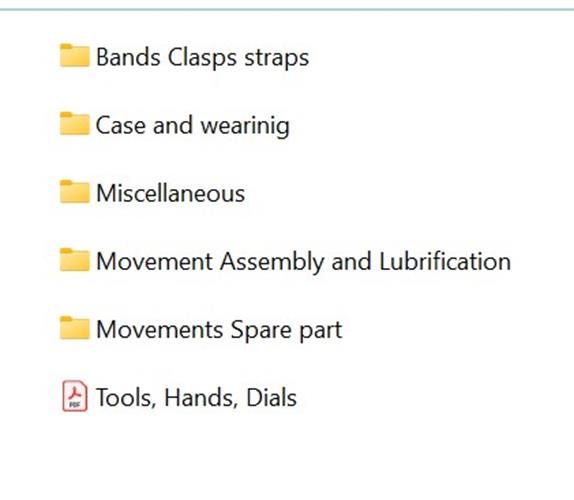

• Plug in: insert the USB stick into a computer to browse the folders of PDF files.

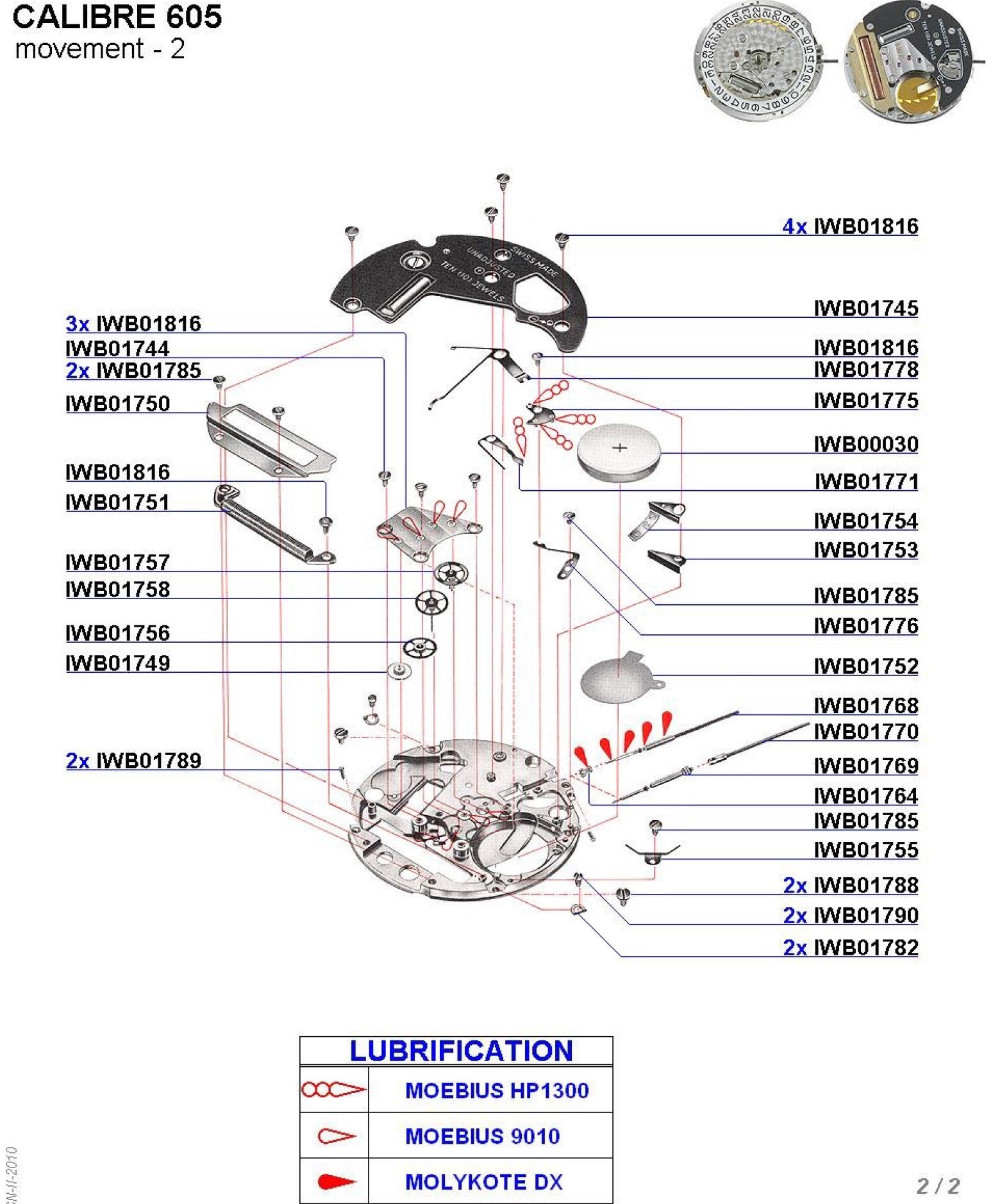

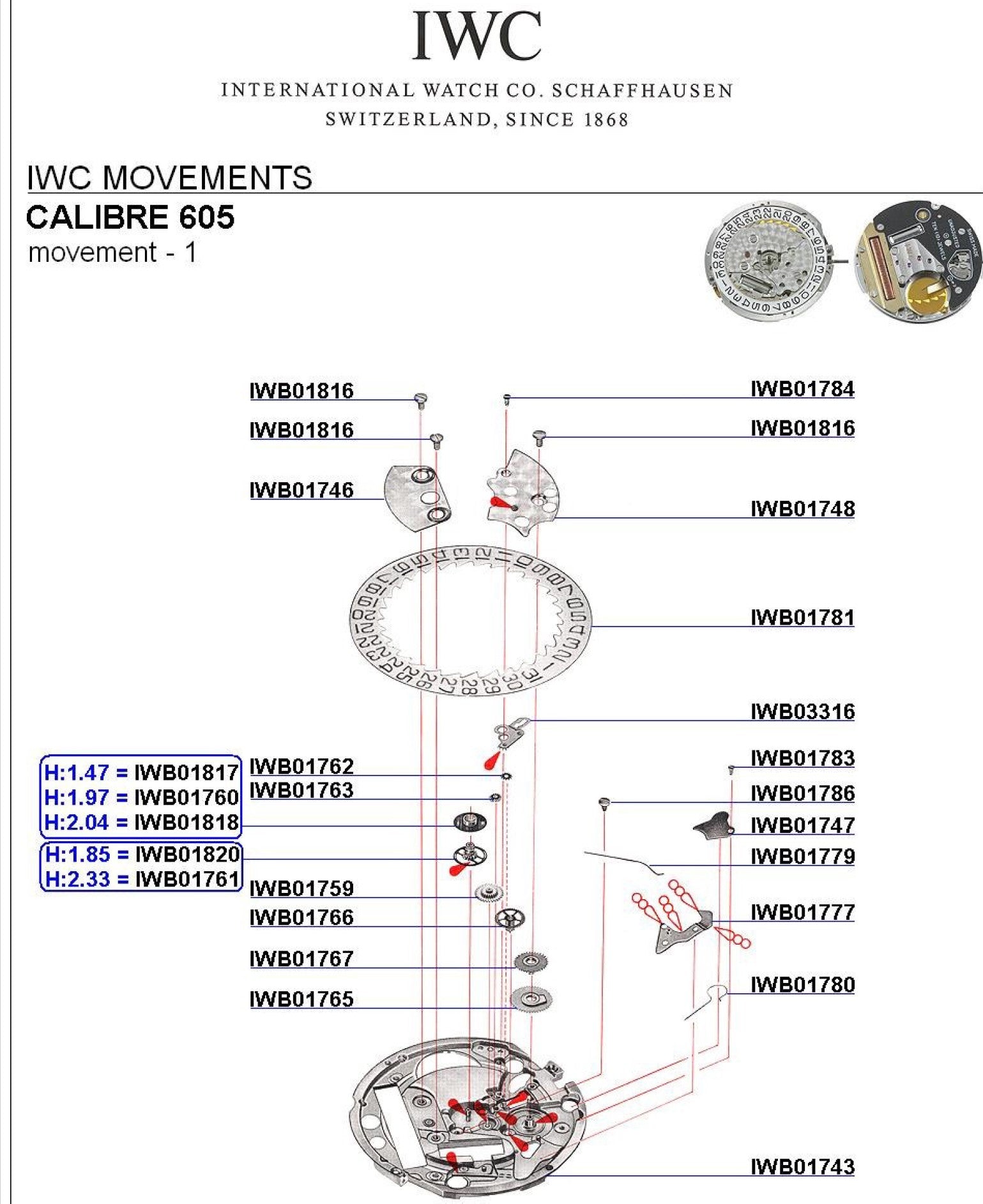

• Identify the movement: use the movement & assembly guides (66 IWC calibres covered) to confirm the reference and see exploded assembly diagrams.

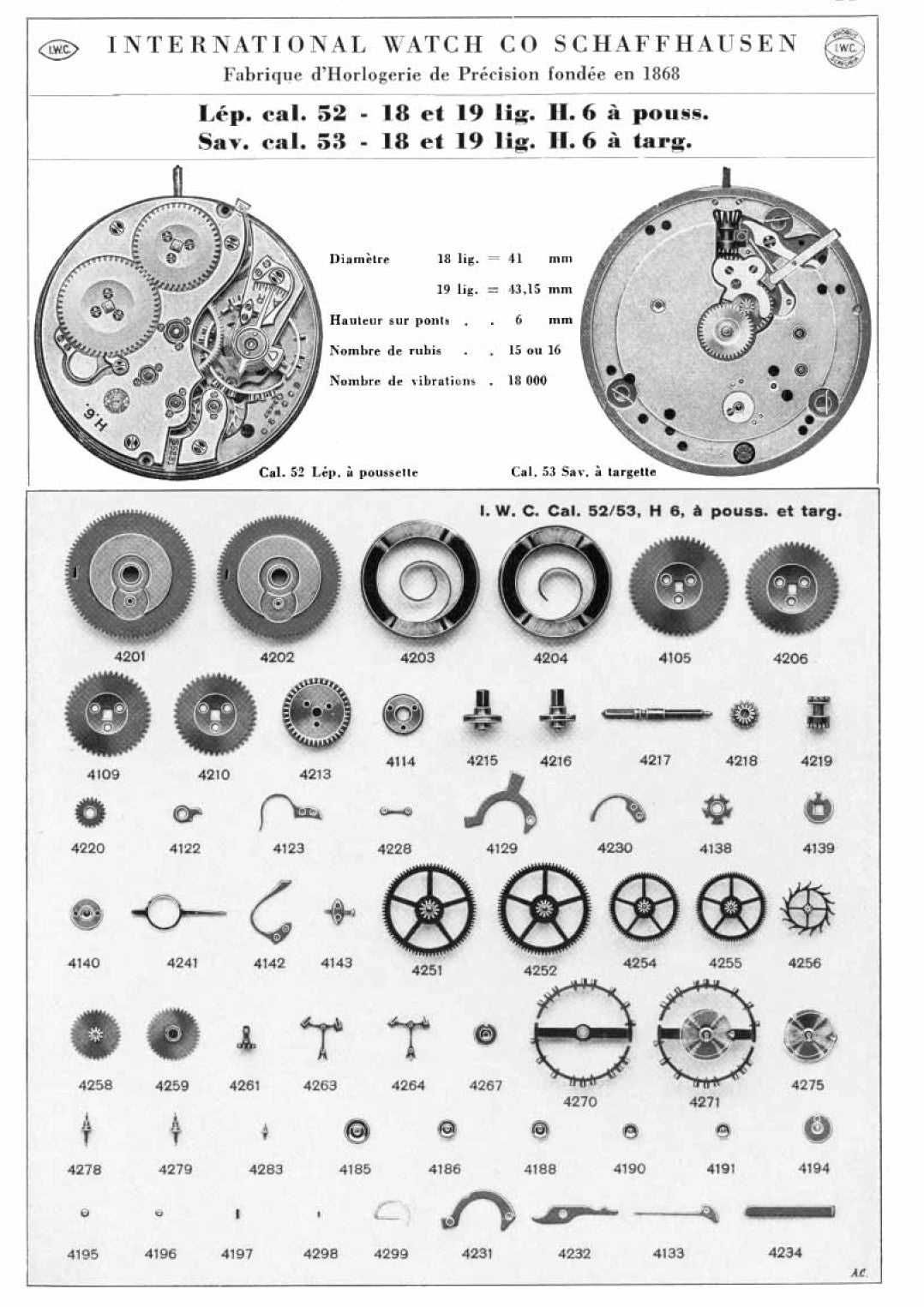

• Check spare parts: refer to the 74 movement spare parts sheets to find correct part numbers before ordering replacements.

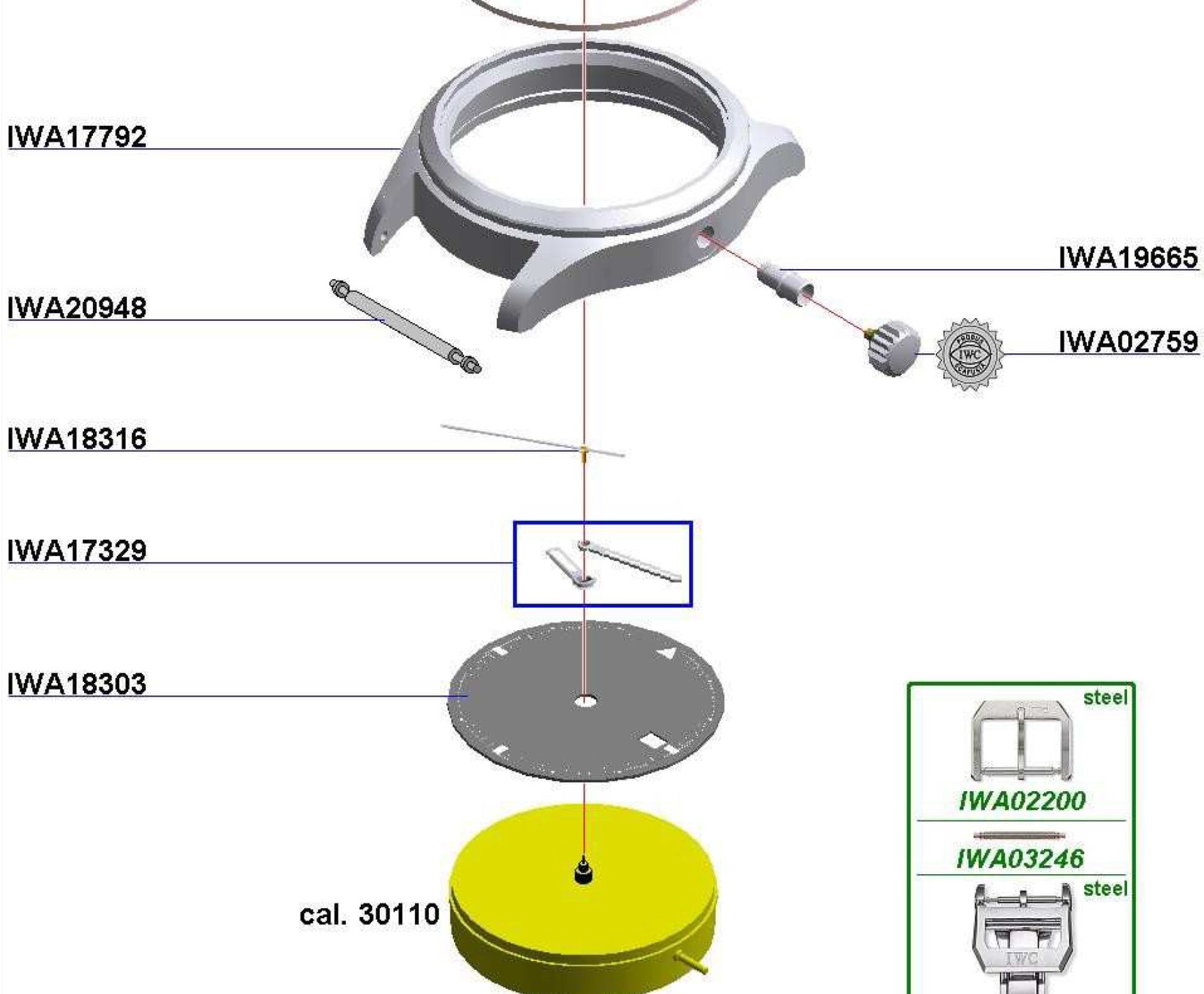

• Match case details: use the 445 case information PDFs to identify case references and construction.

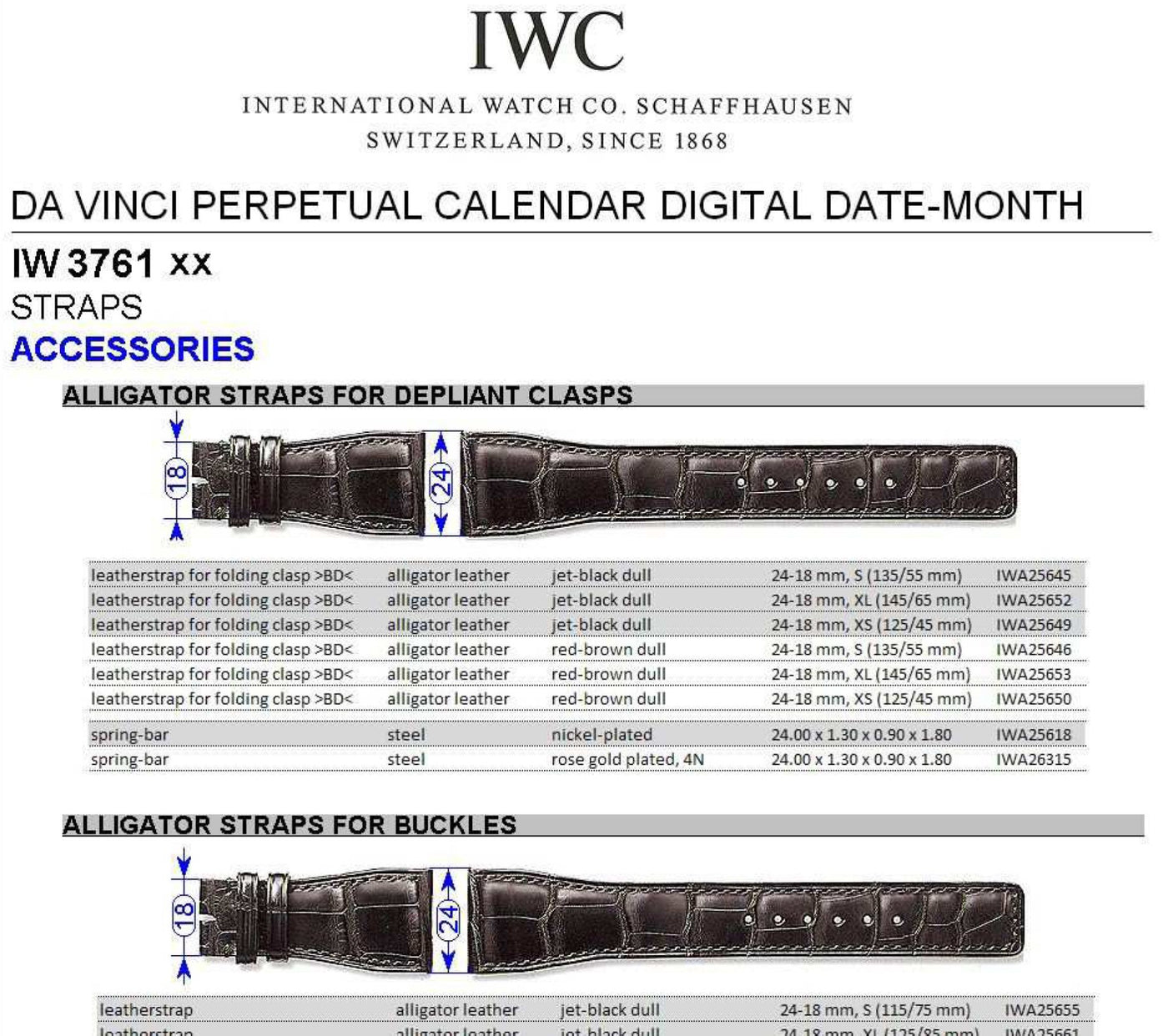

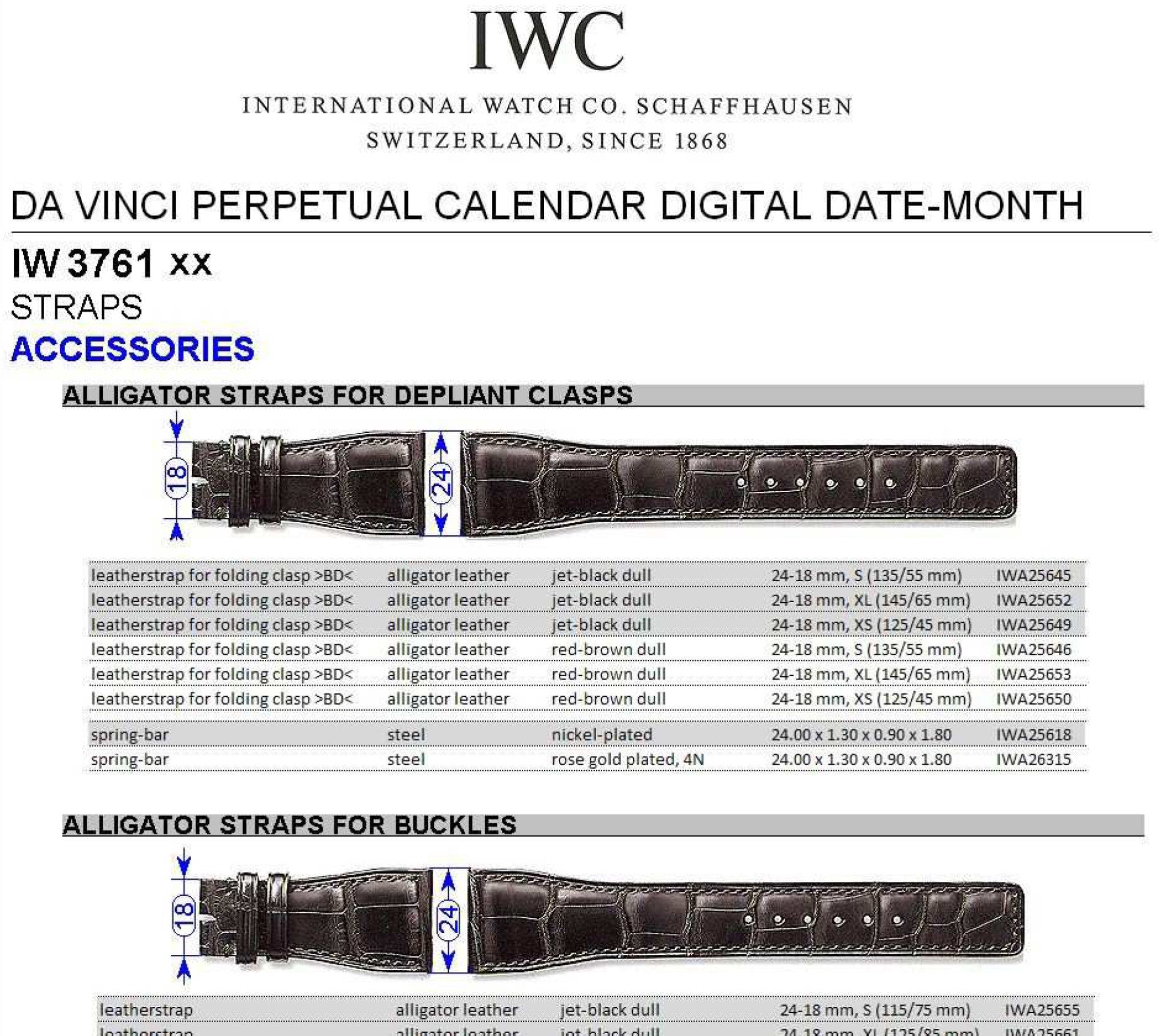

• Check straps & clasps: use the 119 band, clasp and strap PDFs to identify or source the correct fitting.
